hot dip galvanized hulk earth anchors, ground earth anchors,foundation anchors ,earth drill anchors
hot dip galvanized foundation screw earth anchors ,hot dip galvanized cast iron driven ground anchors
Screw Anchor System offers a versatile and cost effective power driven screw anchor for applications through Class 2 soils and to 160kn holding strength. These anchors can be installed to a depth of 4m with either a boom suspended torque motor line truck or rack type digger truck.

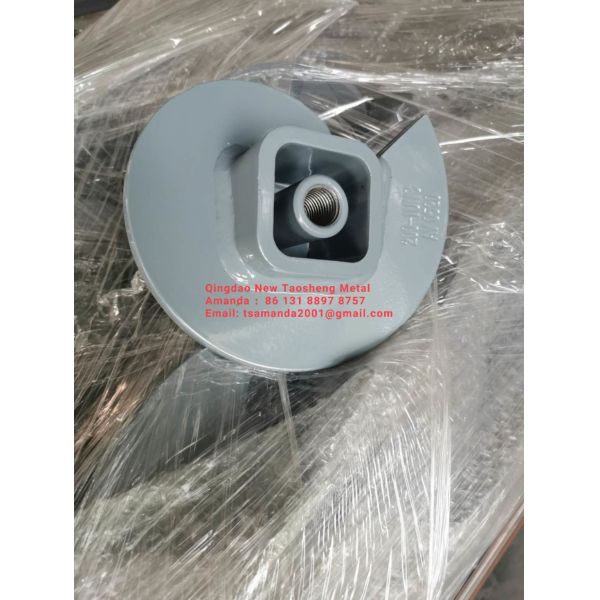

A complete Hulk Screw Anchor Assembly consists of a helix-hub assembly, anchor rod, and eye nut. The helix size (diameter) is selected for the required holding strength.
The rod is selected for the guy load and installed depth and eye nut is selected for the number of guys. The torque required to install the anchor will determine the anchor hub rating.
The nominal sizes for of the anchor rods are 16mm, 20mm and 24mm for 72kn, 102kn and 160kn ultimate tension respectively. Anchor rod lengths are 1.1m and 2.1m. The ends of the 20mm diameter rod are upset and have the same thread as the 24mm rod. A typical installation is with one 2.1m length of rod.
Eye nuts are designated with an “S”, “D” or “T” for attaching one, two, or three guys, respectively.
Related Products
Our Factory:
Our packing:
Our Services
1. How can I get a quotation from your company?
In order to quote you as soon as possible please provide us the following information:
1).Detail drawings (CAD/PDF/DWG/IGES/STEP)
2).Material
3).Quantity
4).Surface treatment
5).Any special packaging or other requirement
2. Do you provide sample for validation?
Yes, sample fee negotiate, with mass production we will provide free sample for validation before production.
3. How is your quality control ?
We have standard metrology equipment and seasoned inspector, all parts are practice in-process inspection and 100% final inspection to meet the requirements of the customer engineering drawings.
