Product Description
Round Shaft Helical Piles
-
Shaft material: Seamless high tensile pipe, conforms to ASTM A500 GRADE B
-
Helices material: ASTM A36 Hot rolled plate
-
Corrosion protection conform to ASTM A153 standard for hot dipped zinc coating
-
Leading edge of Helices beveled 45 degrees
-
Greater Section Modulus Strength to resist Twisting and Deflection
-
Greater Load Capacities
| Specifications |
| Shaft Size (inch) | Wall Thick(inch) | Helix Thick(inch) | Lead Length(ft) | Helix Size(inch) | Extension Length (ft) |
| 2.875 OD. | 0.262 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 3.00 OD. | 0.238 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 3.50 OD. | 0.254/0.300 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 4.50 OD. | 0.290/0.337 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 5.50 OD. | 0.362 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 6.625 OD. | 0.562 | 3/8 or 1/2 | 5ft/7ft/10ft/12ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
Notes:OEM service is available, different materials and specifications can be customized according to your demands.
Advantages
solar ground screw anchor is:offset eye helical anchor
1. extremely environmentally friendly and economical, can be recycled.
2. installed in a matter of minutes without digging and concrete.
3. more efficiency, lower cost, low labor strength.
4. operated precisely, flexible during drilling process.
5. no negative effects on landscape, no damaging on surrounding area.
6. long lifetime. Helical Soil Anchors
7. subjected to strict quality assurance, approved by LGA in Germany.

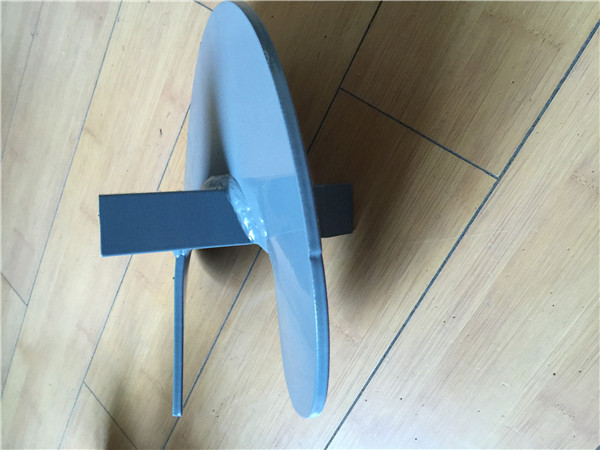

Here are the pictures of the helix anchor
>>>Advantage
1. Raw material comes from tope 10 Steel Companies in China.
2. Sample for confirm first before bulk production.
3. QC.Testing report is compulsory before each dispatch.
4. ISO, SGS certify our quality.
5. 1 20ft container can be shipped within 25 days.
6. 24 hours on line service for global markets.
7. 12 sales consultant with 5 documents assiatant focus on solving customers' different problems in a high efficiency.
>>>FAQ:
1 what’s your payment term
T/T, LC, PayPal, Westunion, Money Gram
2 How long is your delivery time?
3-5 days for sample, delivery time of mass goods is upon quantity.
3 Where is factory located?
Qingdao, Shandong,China, 20 mins away from Liuting Airport.
4 Do you have certificate?
We have ISO, SGS, TS16969 Certificate
5 Can I get a sample first?
Sample is free, but customer pay for express fee.
