Solid Square Hub Single Helix Power Driven Anchors Earth Ground Anchor

Brand Name : NTS

Model Number : NTS32

Certification : ISO9001 CE

Place of Origin : China

MOQ : 200 pcs

Price : as discussed

Supply Ability : 50000 pcs per month

Delivery Time : 30 days

Packaging Details : 150pcs/pallet

Material : Q235

Surface : hot dip galvanized ,red painted

Rod size : 1" 1 1/4"

Length : 54" 66" 96"

Helix : 6" 8" 10"

Helix thickness : 6mm

Eye shape : forged triple eye

Type : Drop-in Anchor

Application : Building Construction

Surface treatment : HDG

Contact Now

Product Description

M24 14INCH socket drive power hub screw anchor

Key Specifications/Special Features:

Material: Steel

Surface treatment: Paint

Size: 8" 10" 12" 14" or as customized drawings

Type: Socket internal drive, power installed anchor

Process: Investment casting
The screw anchor for application through class 2 soils and to 160KN holding strength. These screw anchors also can be installed to a depth of 4m with either a boom suspended torque mortor line truck or rack type digger truck.
Screw Anchor Assembly consists of a helix-hub assembly, anchor rod, and eye nut.
The helix size (diameter) is selected for the required holding strength.

SIZE	THREAD	RATE	TYPE
200 8"	M16 M24	10000 FT.LBS TOR, 160KN ON THE THREAD	SOCKET
250 10"	M16 M24	10000 FT.LBS TOR, 160KN ON THE THREAD	SOCKET
350 14"	M24	10000 FT.LBS TOR, 160KN ON THE THREAD	SOCKET
400 16"	M20	10000 FT.LBS TOR, 160KN ON THE THREAD	SOCKET
450 18"	M24	10000 FT.LBS TOR, 160KN ON THE THREAD	SOCKET

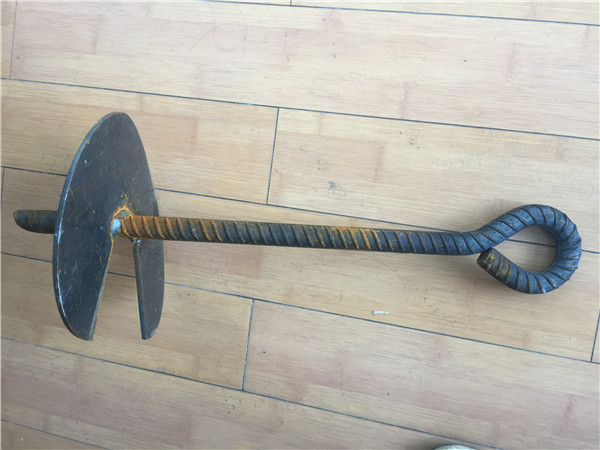

Here are the pictures of the helix earth screw anchor

Assemble parts

Solid Square Hub Single Helix Power Driven Anchors Earth Ground Anchor

Product Usage

An earth anchor is a device designed to support structures, most commonly used in geotechnical and construction applications. Also known as a ground anchor, percussion driven earth anchor or mechanical anchor, it may be impact driven into the ground or run in spirally, depending on its design and intended force-resistance characteristics

Product packaging

Other types of helix pipe anchor:

Solid Square Hub Single Helix Power Driven Anchors Earth Ground Anchor
Packing pictures of ground anchor: packing size and quantity depends on the rod and plate diameter

Our Advantages

If you have any question, please do not hesitate to contact me.

 If you can provide the drawing or sample, we can manufacture products as your request with high quality.
